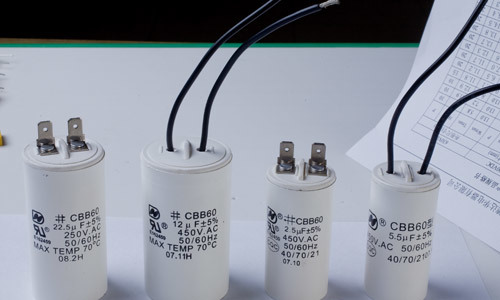

Standard System for Film Capacitors

Time：

2022-07-19 14:12

Source：

Author:

The standard system of fixed capacitors for electronic equipment is composed of basic standards, general specifications, sub-specifications, and detailed specifications (ie, enterprise standards).
The general specification specifies standard terminology, inspection procedures and test methods used in sub-specifications and detail specifications. The sub-specification is classified according to the dielectric and structure of the capacitor, it specifies the preferred rating and characteristics of the capacitor, and selects the appropriate quality assessment procedures, test and measurement methods from the general specification, and gives general performance requirements.
Standard system of film capacitors:

Standard	standard
GB 2693 (IEC 60384-1)	Part 1: General Specification
GB 7332 (IEC 60384-2)	Part 2: Sub-specification: Metallized polyester film dielectric DC fixed capacitors
GB 7333 (IEC 6 0384-2-1 )	Part 2: Metallized Polyester Film Dielectric DC Fixed Capacitors
	Detailed Specifications: CL23B, CL23, CL21, CL21X, CL20
GB 6346 (IEC 60384-11)	Part 11: Sub-specification: Metal Foil Polyester Film Dielectric DC Fixed Capacitors
GB 6347 (IEC 6 0384-11-1 )	Part 11: Metal Foil Polyester Film Dielectric DC Fixed Capacitors
	Detailed Specifications: CL12, CL11, CH11
GB 10188 (IEC 60384-13)	Part 13: Sub-specification: Metal Foil Polypropylene Film Dielectric DC Fixed Capacitors
GB 10189 (IEC 60384-13-1)	Part 13: Metal Foil Polypropylene Film Dielectric DC Fixed Capacitors
	Detailed specification: CBB13,
GB/T 14472 (IEC 60384-14)	Part 14: Sub-specification: Fixed capacitors for suppression of electromagnetic interference in mains
GB/T 14473 (IEC 60384-14-1)	Part 14: Fixed Capacitors for Suppression of Power Supply Electromagnetic Interference
	Detailed specification: MKP-X2 C31-C35 C61 C62
GB 10190 (IEC 60384-16)	Part 16: Sub-specification: Metallized polypropylene film dielectric DC fixed capacitors
GB 10191 (IEC 60384-16-1)	Part 16: Blank Detail Specification: Metallized Polypropylene Film Dielectric DC Fixed Capacitors
	Detailed specification: CBB21,
GB/T 14579 (IEC 60384-17)	Part 17: Sub-specification: Metallized Polypropylene Film Dielectric AC and Pulse Fixed Capacitors
GB/T 14580 (IEC 60384-17-1)	Part 17: Metallized Polypropylene Film Dielectric AC and Pulse Fixed Capacitors
	Detailed specification: CBB81, CBB28
